What Is tDynamo?

The tDynamo is Arryved’s latest hardware that offers tap, dip, swipe, and digital wallets all in one card reader! The tDynamo is exclusive with Arryved Pay, our new, end-to-end payment solution with in-house payment processing. Use this guide to set up your new tDynamo card readers and transition out of your old ones.

Prerequisites

• Use this guide once you’ve received your new tDynamo card readers. Have them fully charged and the mounting devices handy.

• Grab the POS devices you want to pair with your new card readers.

• You must update Arryved Service to version 2.0 on all of your POS devices that’ll have a tDynamo card reader.

Limitations

• The new tDynamo card reader is even more durable than ever! But please keep in mind that they can still break if banged around too much!

• Do not mount the card reader to the POS device directly. Mount the provided clip so you can attach and remove the card reader at any time to set it aside for charging or to view the serial number on the back of it. The serial number is needed for pairing.

• If the card reader’s battery is below 20%, it may have a hard time connecting to Arryved Service.


Setup Guide

Steps To Follow

1. Remove old card readers

2. Mount new tDynamo card readers

3. Pair new tDynamo card readers

Step 1: Remove Old Card Readers

First, we must remove your old card readers to make space for the new ones.

1. Grab the POS devices you want to pair with your new card readers.

2. For any easily detachable card readers and koozies, go ahead and remove those first.

3. For koozies that are attached with sticky tape, twist them to detach. Don’t pull!

• Pro Tip! Try sliding a piece of floss back and forth in between the koozie and POS device to detach the sticky tape.

• Use Isopropyl or alcohol wipes to remove any sticky residue. A clean surface is necessary to attach the new reader.

Step 2: Mount New tDynamo Card Readers

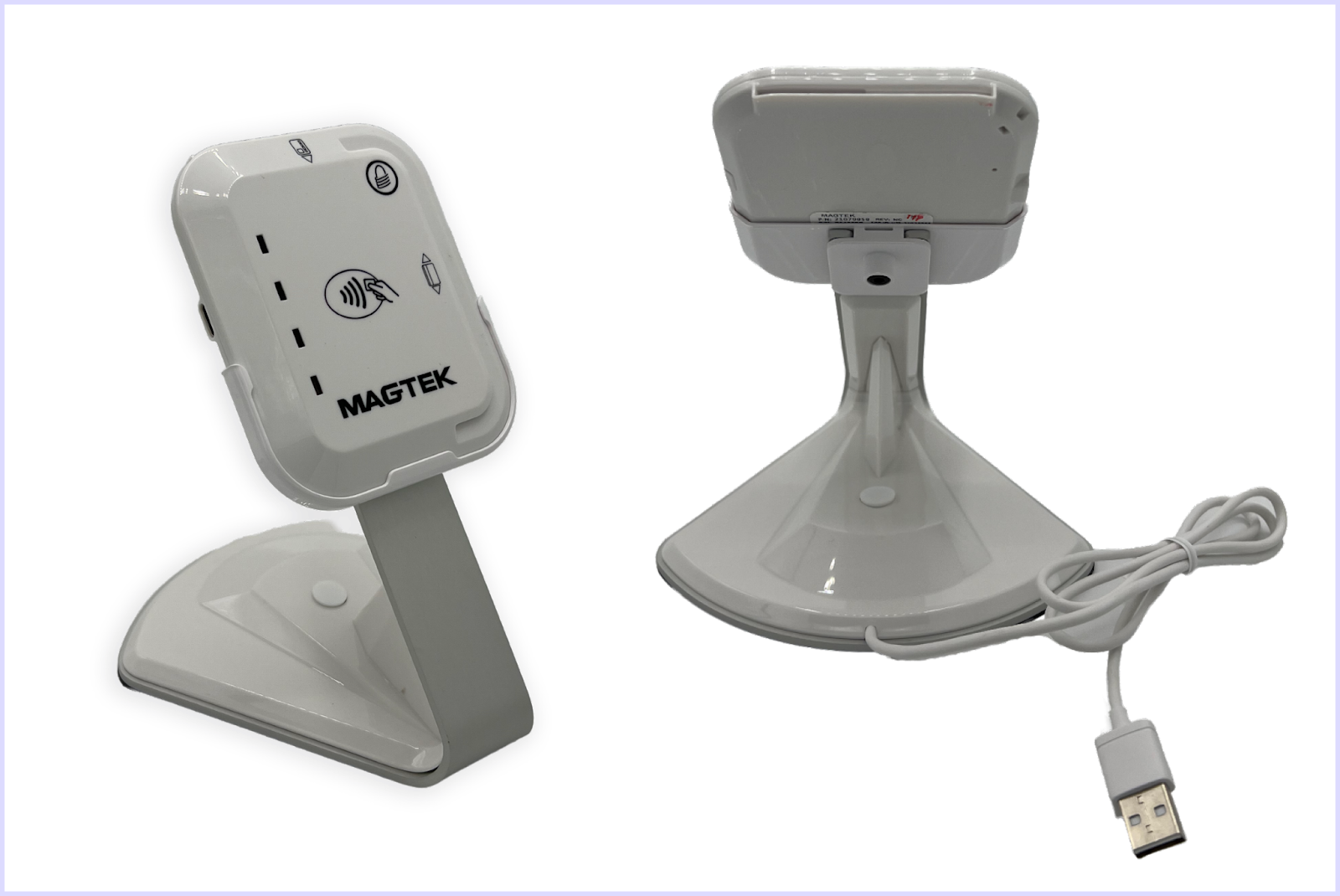

Stand-Alone

The new tDynamo card readers can live in a stand-alone dock and placed on any surface area. The dock has the charging cable attached, and the tDynamo card reader can be removed from the clip when needed.

Attached To The POS Device

If you want the tDynamo directly attached to your POS device, the clip can be mounted with sticky tape:

1. Find the perfect spot for the clip on your tablet, handheld, or foam case.

• See the image examples below for the best placement.

• Place the clip properly so the card reader’s dip/swipe ports face in the best direction to insert or swipe a card.

• On a handheld device, you’ll probably want the dip/swipe ports to face downward so the card can be inserted from the bottom of the device.

• On a tablet stand or foam case, the dip/swipe ports should be facing upward so the card can be inserted from the top of the device.

2. Be sure the surface area is clean. Use alcohol wipes to remove residue, dust, and oils.

3. Remove the backing of the sticky tape and apply it to the POS device or the clip itself.

4. Make sure the outer edge of the clip is facing in the correct direction so that tap, dip, swipe, and the charging port are accessible (see image examples below). Press the clip into the device and sticky tape. Hold for 30 seconds.

5. Wait 24 hours before applying weight to the clip for maximum hold.

6. After 24 hours, pop the reader into the clip. Be sure the charging port and the tap, dip, and swipe ports are positioned correctly.

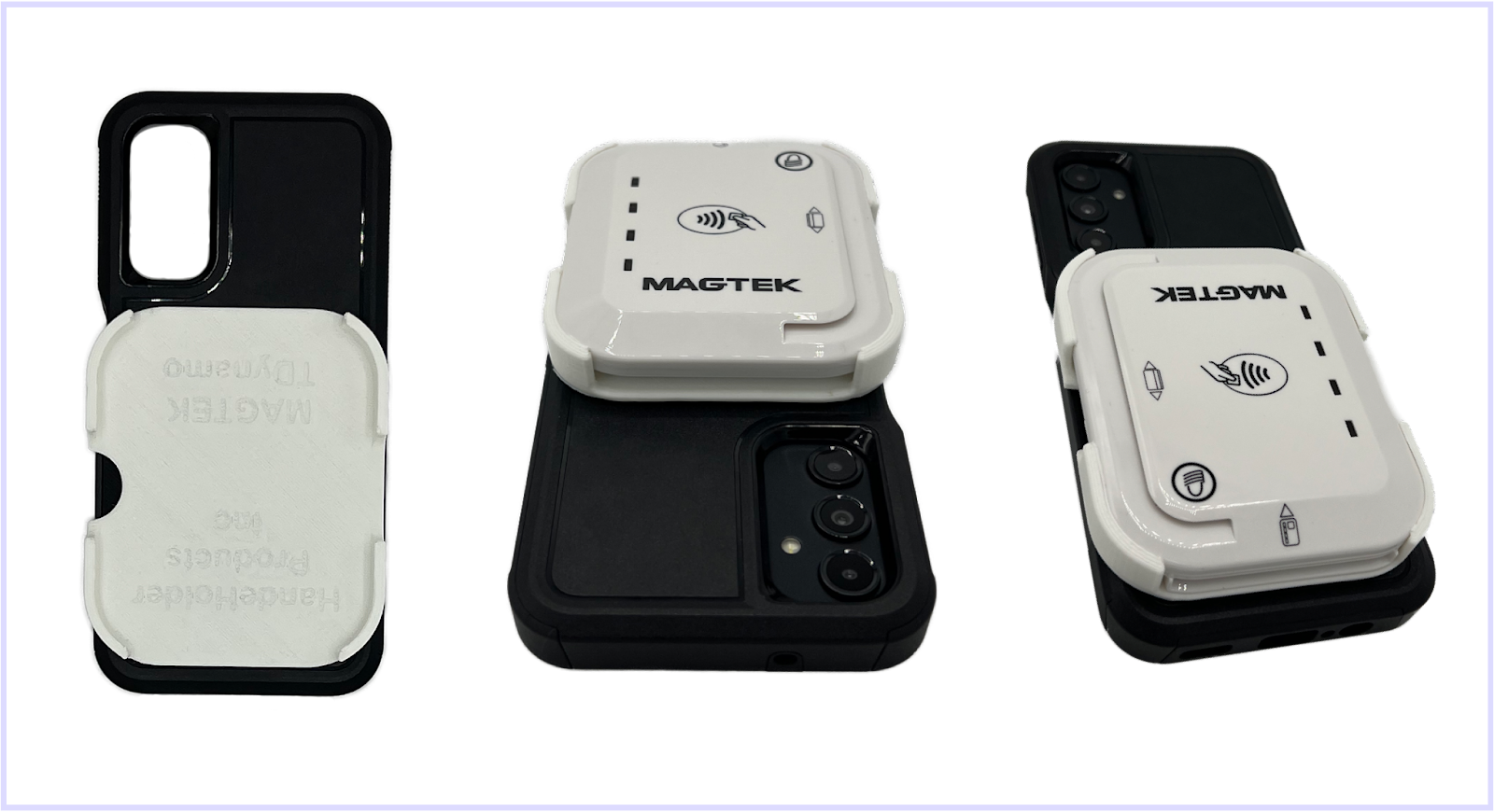

Handheld Device

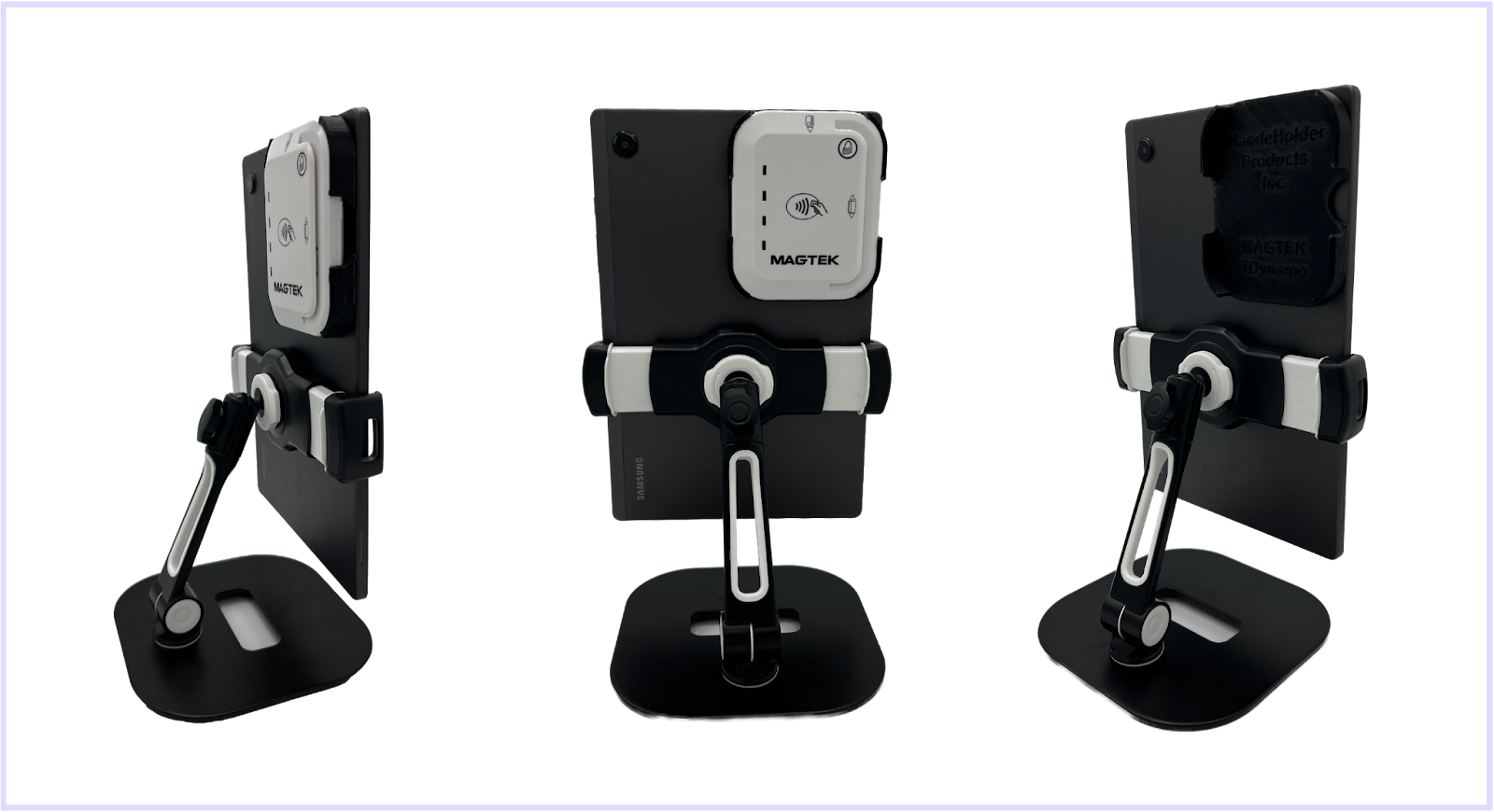

Tablet With Stand

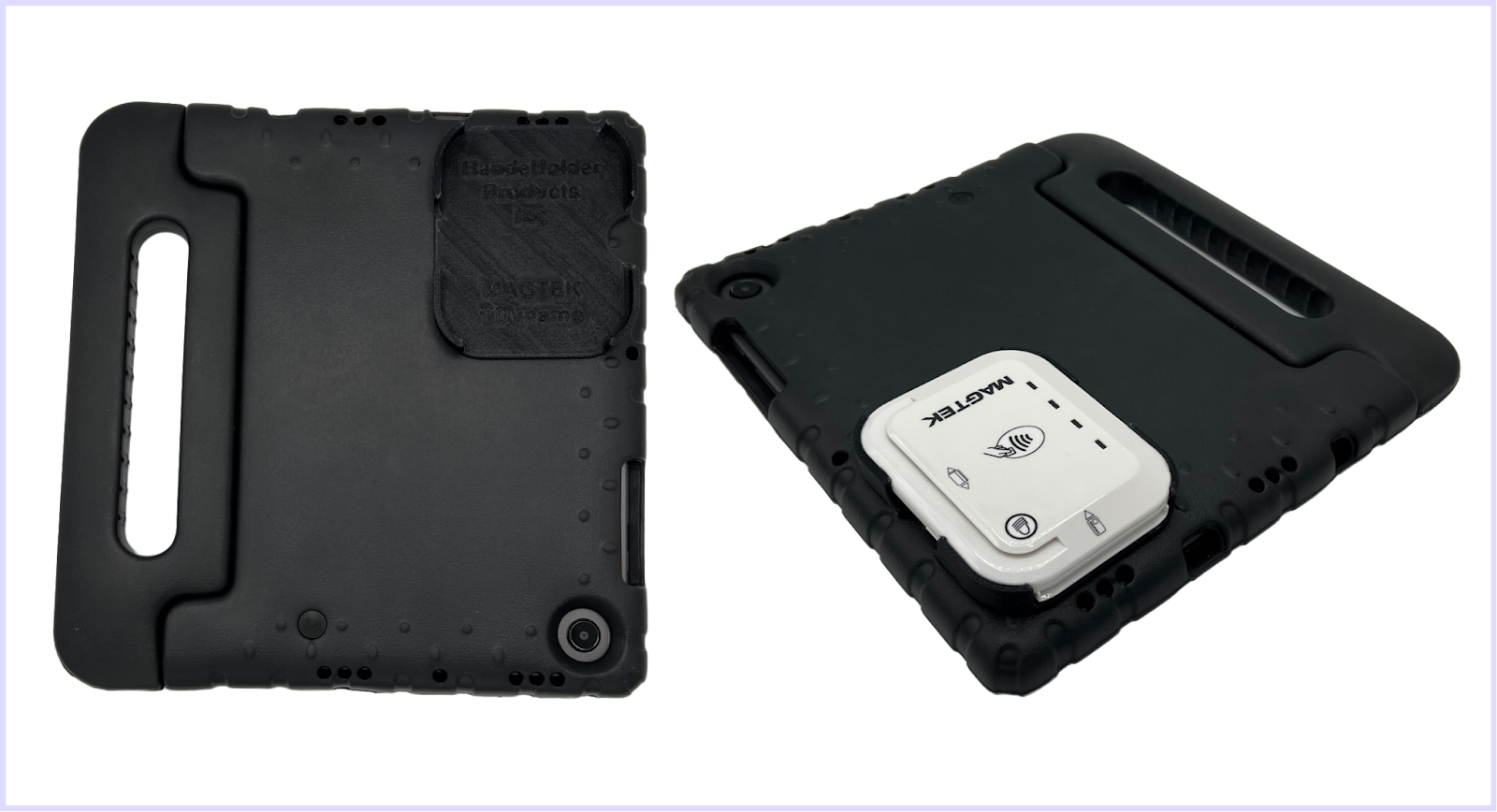

Tablet With Foam Case

Step 3: Pair New tDynamo Card Readers

There are a few ways to pair your tDynamo card reader to your POS device. You can hardwire it or Bluetooth pair it. If your POS device is operating on Android 15, then an extra app is needed. Scroll down to the pairing option you need below.

USB-C PAIRING

We encourage you to pair your tDynamo card reader with a USB-C cable. This hardwired approach is the simplest to set up and will provide the fastest and most reliable connection.

1. Grab a short cable that has USB-C on both ends.

2. Plug one end into the card reader and the other into the POS tablet or handheld.

3. Open Arryved Service on the device and log in.

4. Tap STAFF.

5. Tap Settings.

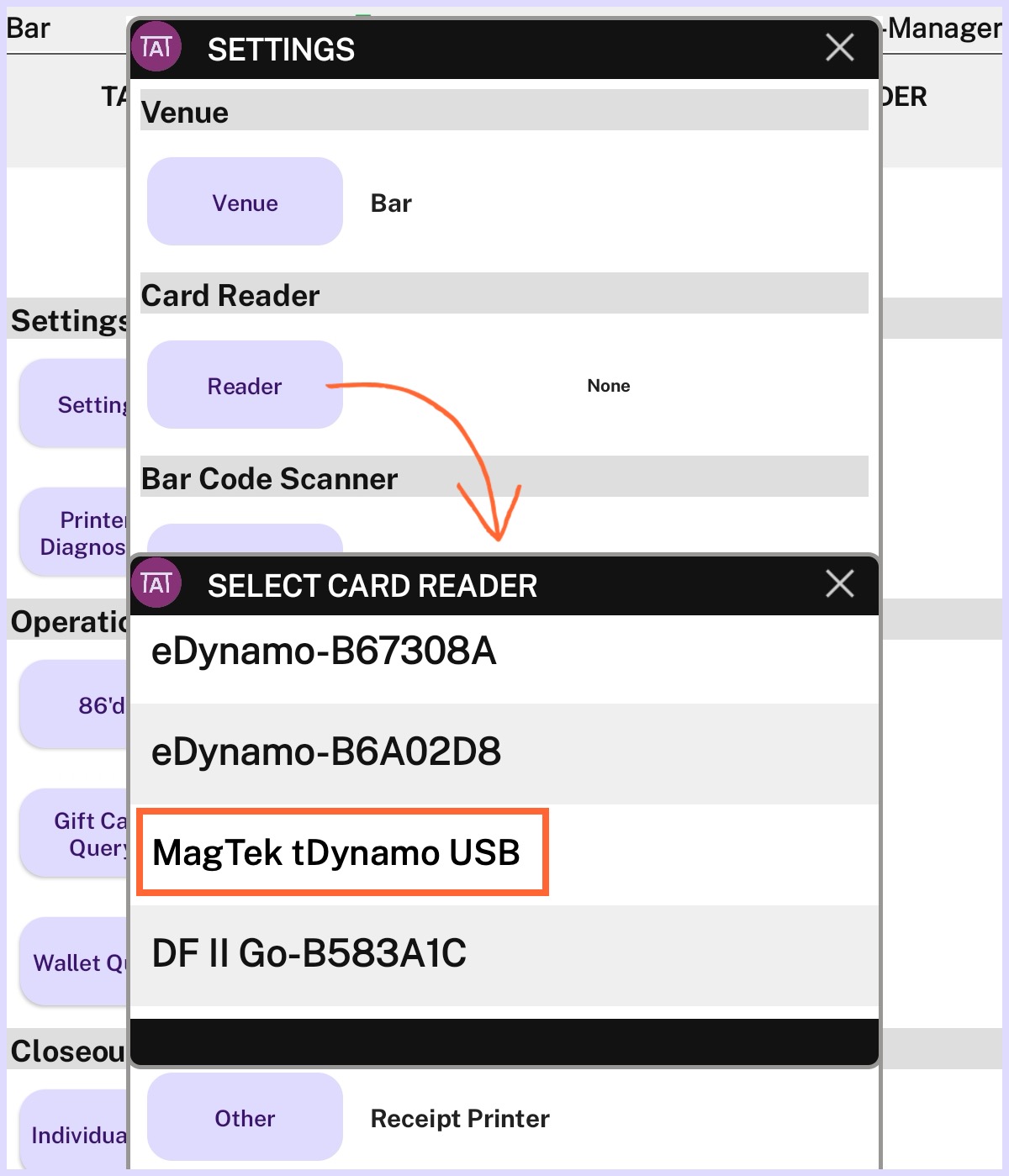

6. Tap the Reader button.

7. Select MagTek tDynamo USB

8. Tap OK on the confirmation window.

BLUETOOTH PAIRING

If you want to pair the card reader via Bluetooth, there’s just one extra step in Arryved Service.

→  Pair BLE Device

1. Put the card reader in Pairing Mode (Press and hold the pushbutton on the side of the reader for 3 seconds until you see the LEDs flash blue 3 times).

2. Open Arryved Service on the POS device you want to pair with.

3. Toggle to the STAFF screen.

4. Tap Settings.

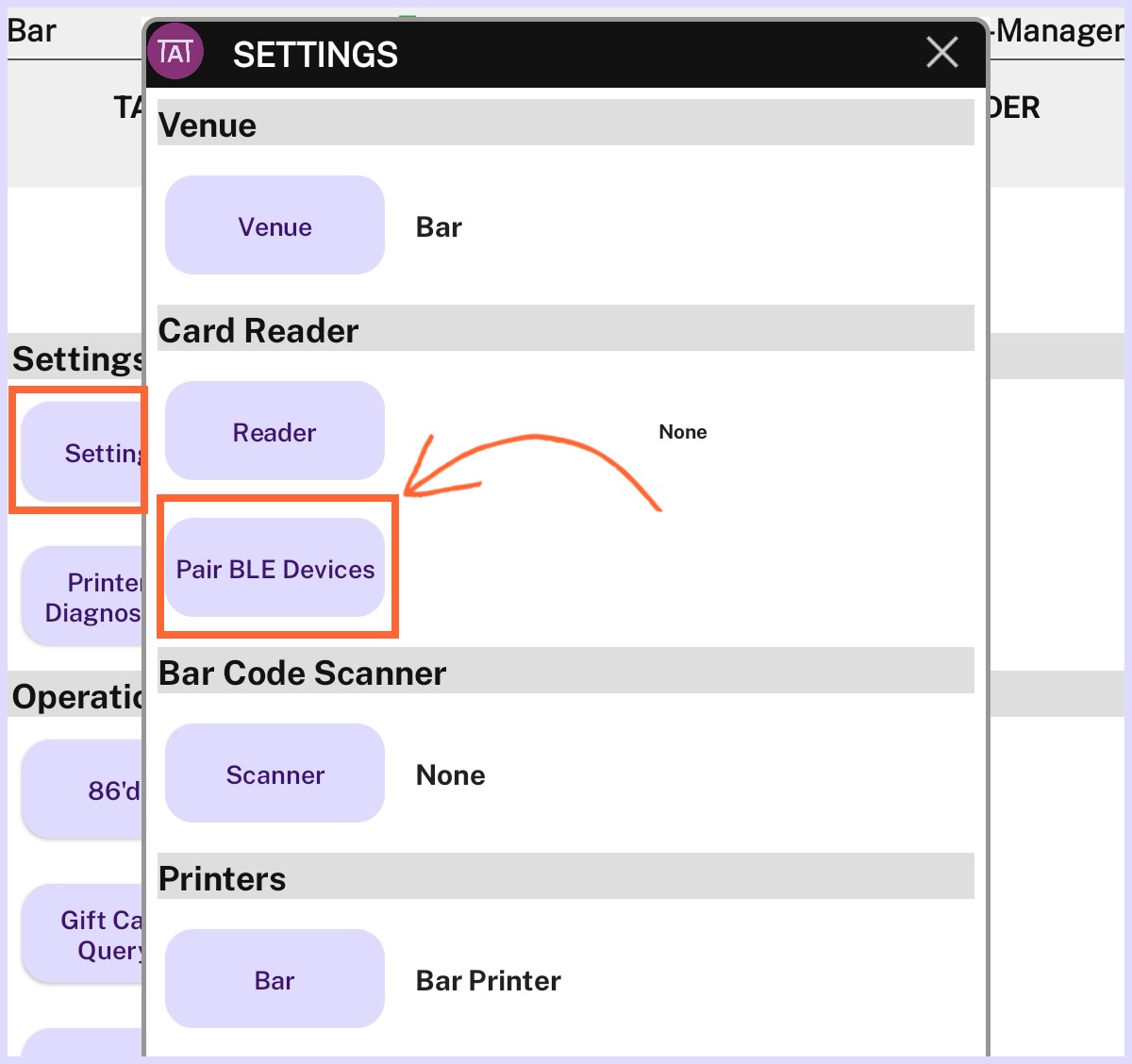

5. Tap Pair BLE Devices.

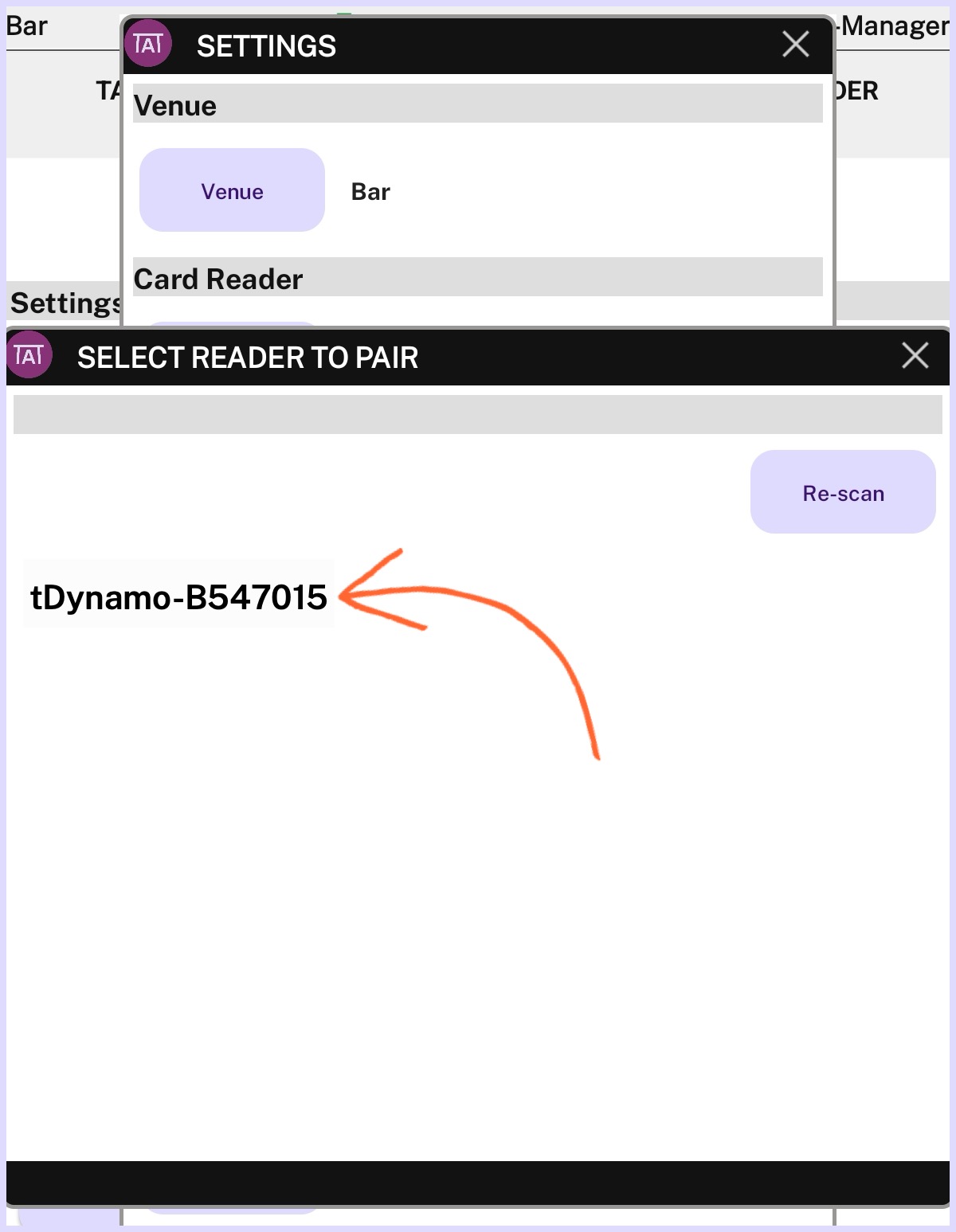

6. You should see the tDynamo-B[xxxxxx] reader with the matching serial number on the list. Tap the Scan button if you don’t see it.

• To find your serial number, look on the sticker on the back of the card reader next to ‘SN: B[xxxxxx]’.

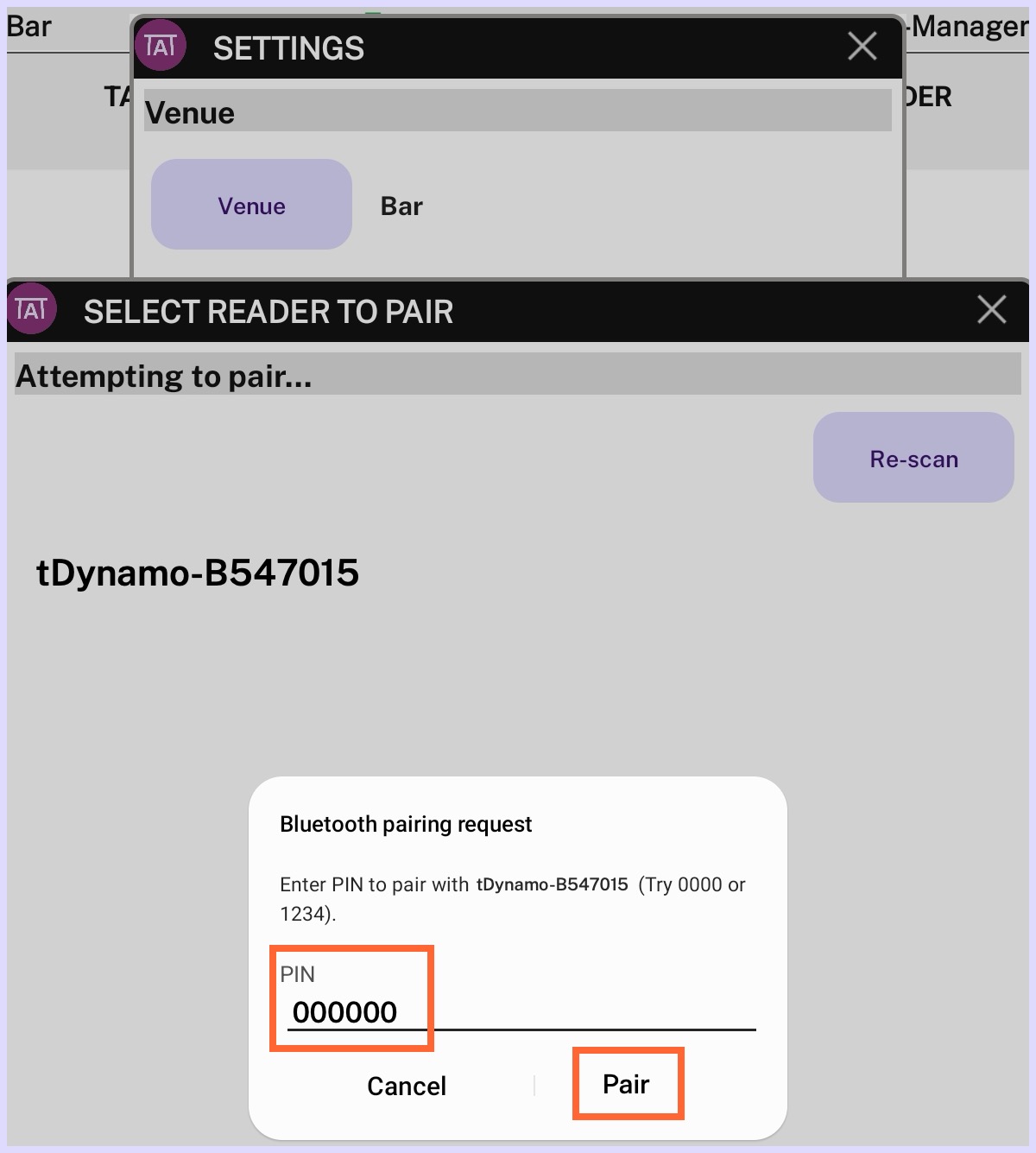

7. When it prompts you for a PIN, enter ‘000000’ (that’s 6 zeros), then tap Pair.

8. If pairing was successful, you see a success message, and the reader will now say 'already paired’ next to it. You can now X out of that window.

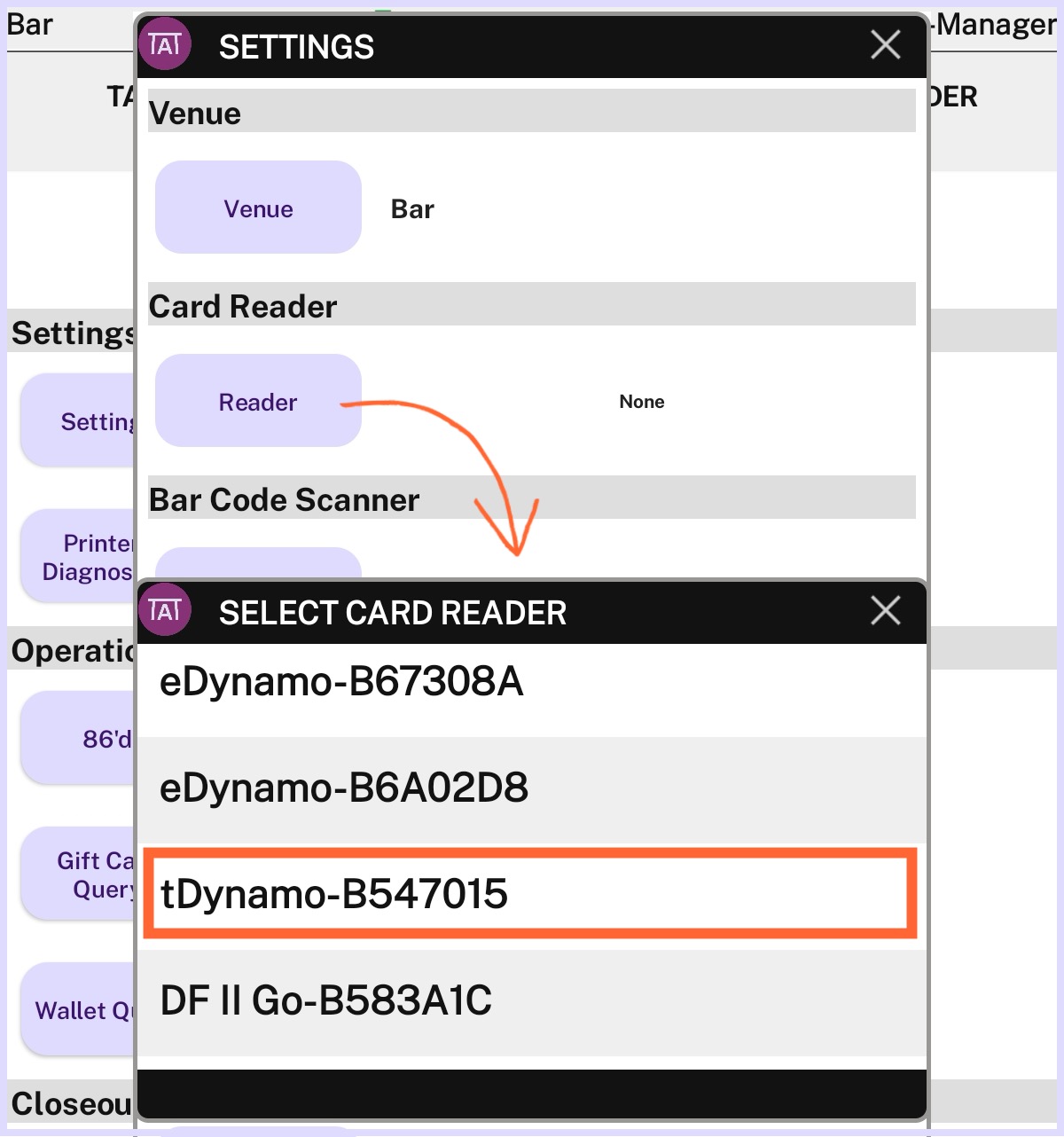

9. Now, tap on the Reader button on the Settings window.

10. Look for the same tDynamo-B[xxxxxx] reader and tap on it to select this reader to use with this POS device today.

• Your reader will remain selected on this screen until you go in and select a different reader, so you don’t have to do this every day.

Gut Check!

In Arryved Service, start and close a few test tabs to see if the card reader is paired and working properly!
